Machine larger and heavier components with
better rigidity, reliable accuracy, and fewer re-setups.
Machine larger and heavier components with better rigidity, reliable accuracy, and fewer re-setups.
Built on a Track Record

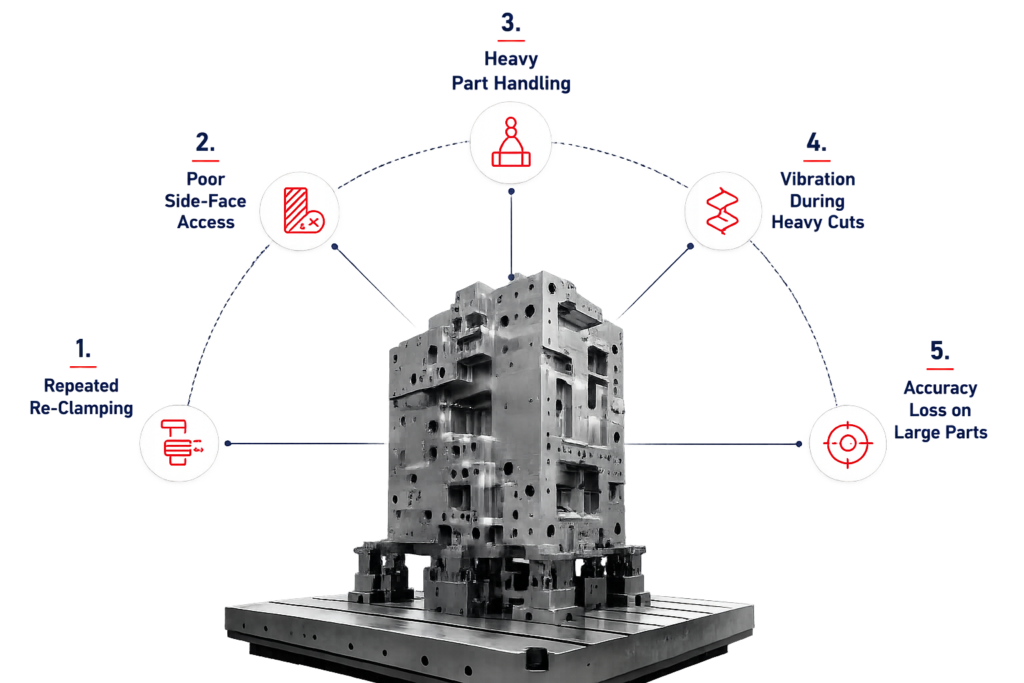

Part Size Increases = Machining Complexity Increases
Why STM Double Column Machines for Complex Machining

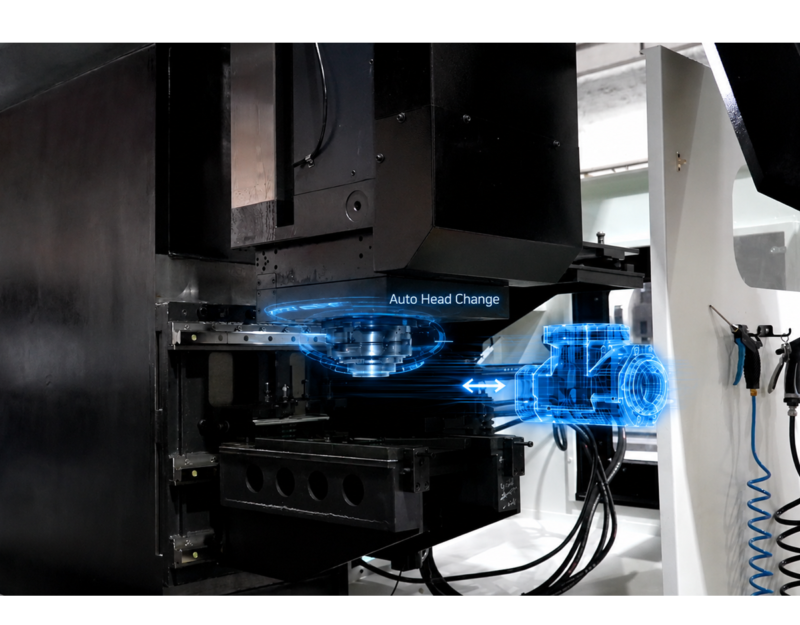

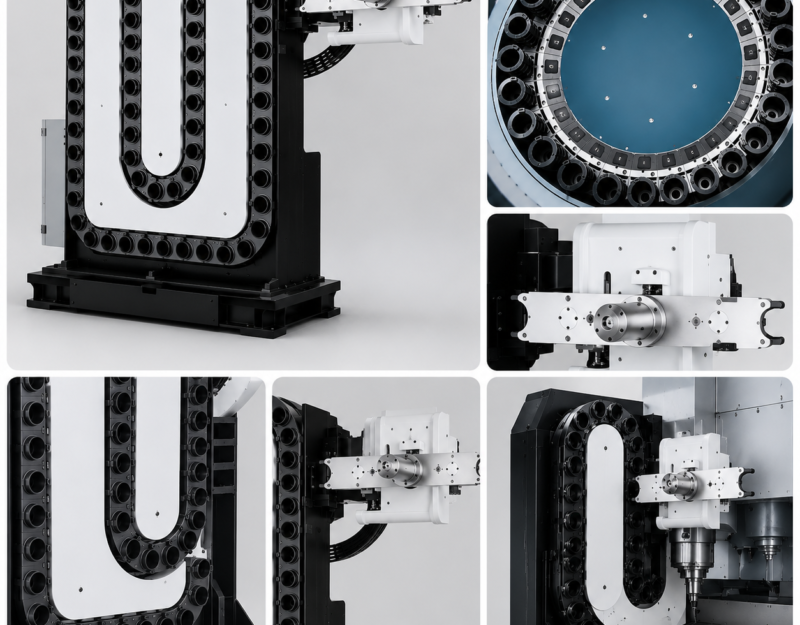

STM Double Column Machine’s comes with Auto Head Change which enables different angle Heads to be integrated enabling multi face machining on the components.
- Frequent Re-clamping – Part Production Time Increases
- Eliminate the poor side face machining capability
- Eliminate the errors and time lost due to re-clamping on other machines
- Carries upto 35,000 of Table Load.
- Machines Up to 6200mm X- Axis Travel

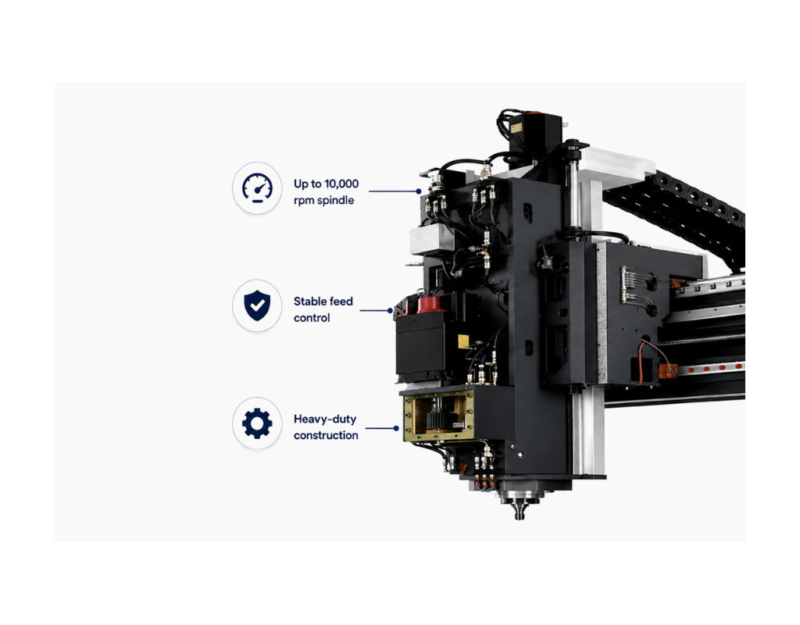

- High Torque Spindle to Match the Part Heaviness
Machine Numbers that Don’t Lie

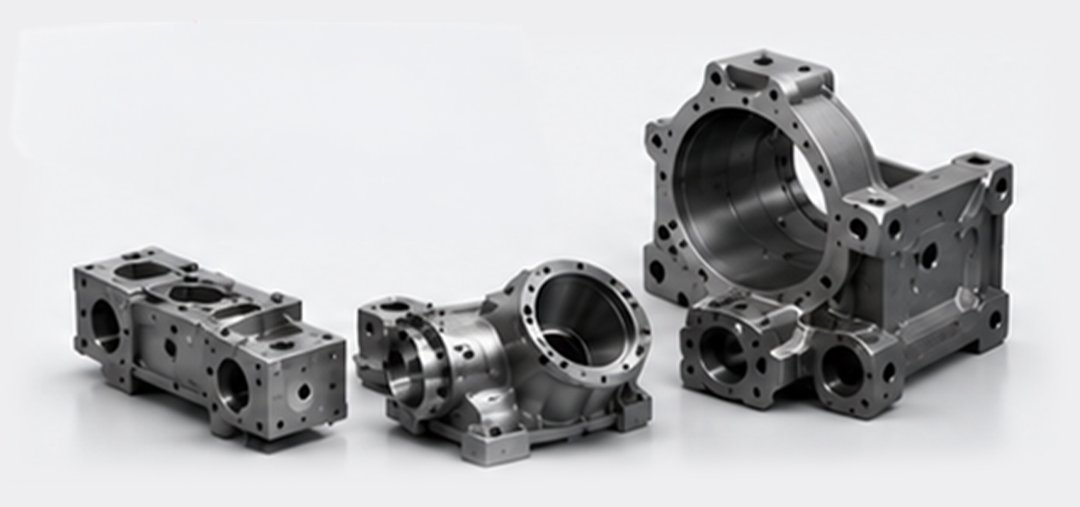

A Job shop moving from VMC to Double Column gains Advantage of
Engineered for the Demands of Large Component Machining

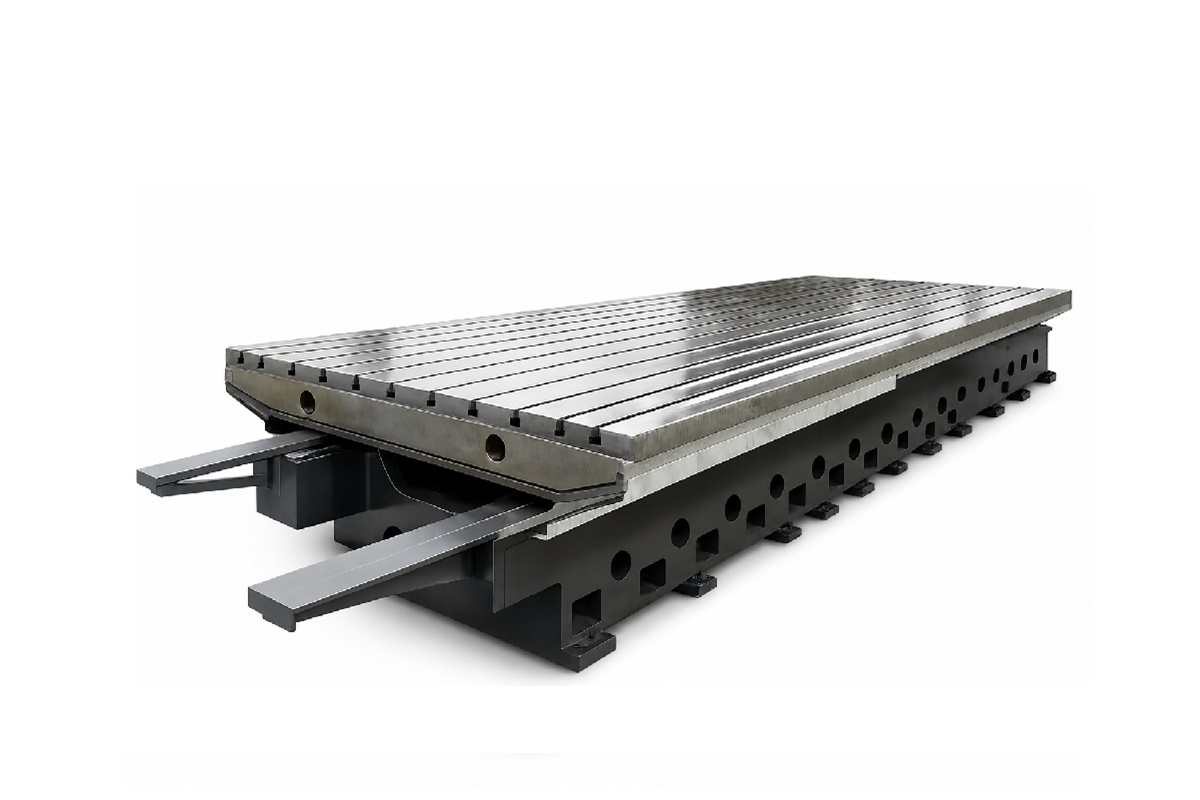

- Hardened Heavily Forged Table Casting for Superior performance
- Heavily Ribbed Structure – for excellent Heavier Carrying
- T-slots positioned in the way for Effective Workpiece Holding
- Powerful Torque Transmission

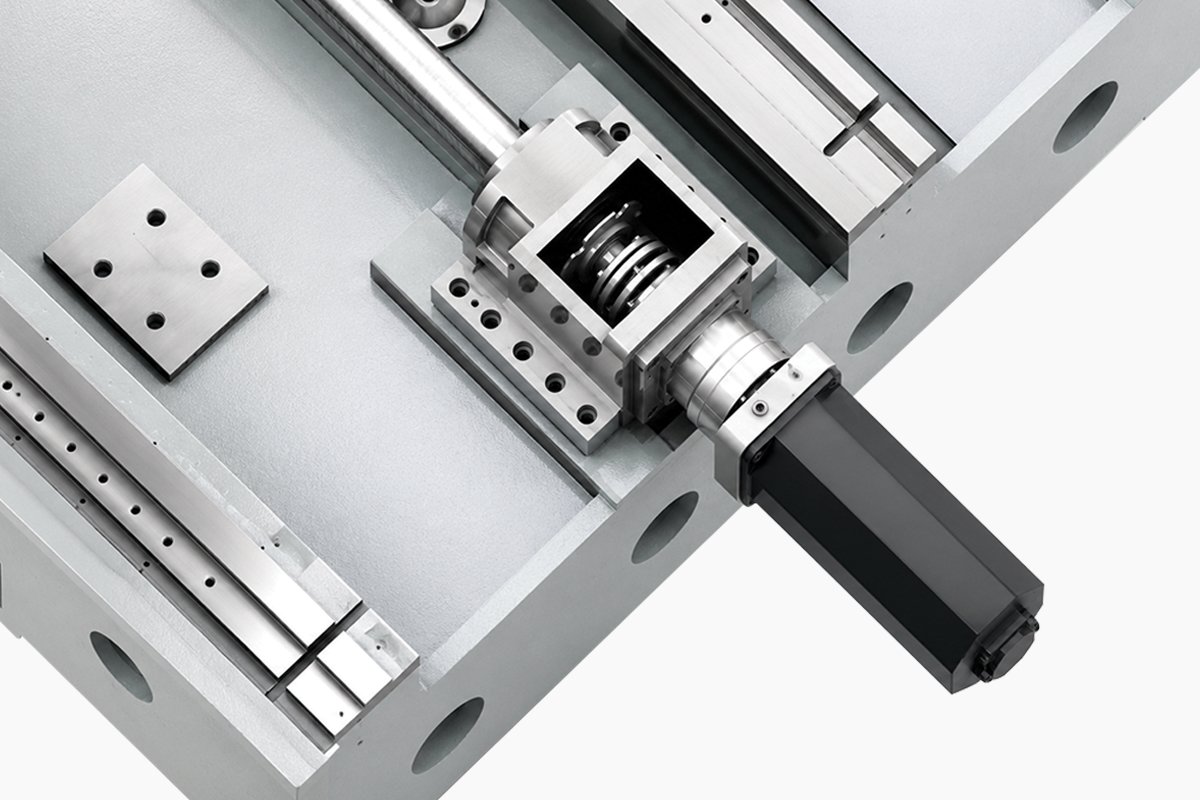

- X&Y Axis Gear box
- Stable Movement of Heavy Components

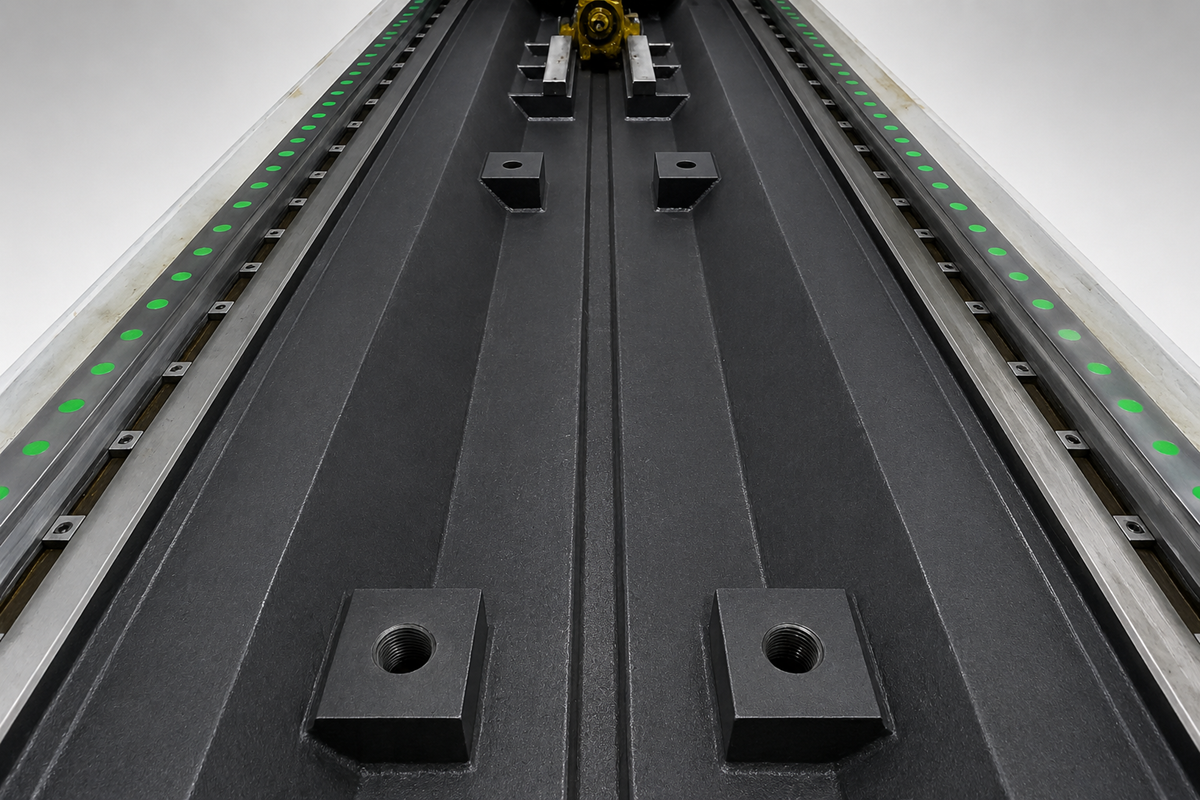

- Heavily Structured Single Piece Casting
- Absorbs Heavy Duty Cutting loads
- Maintains Part Quality across Machining Duration

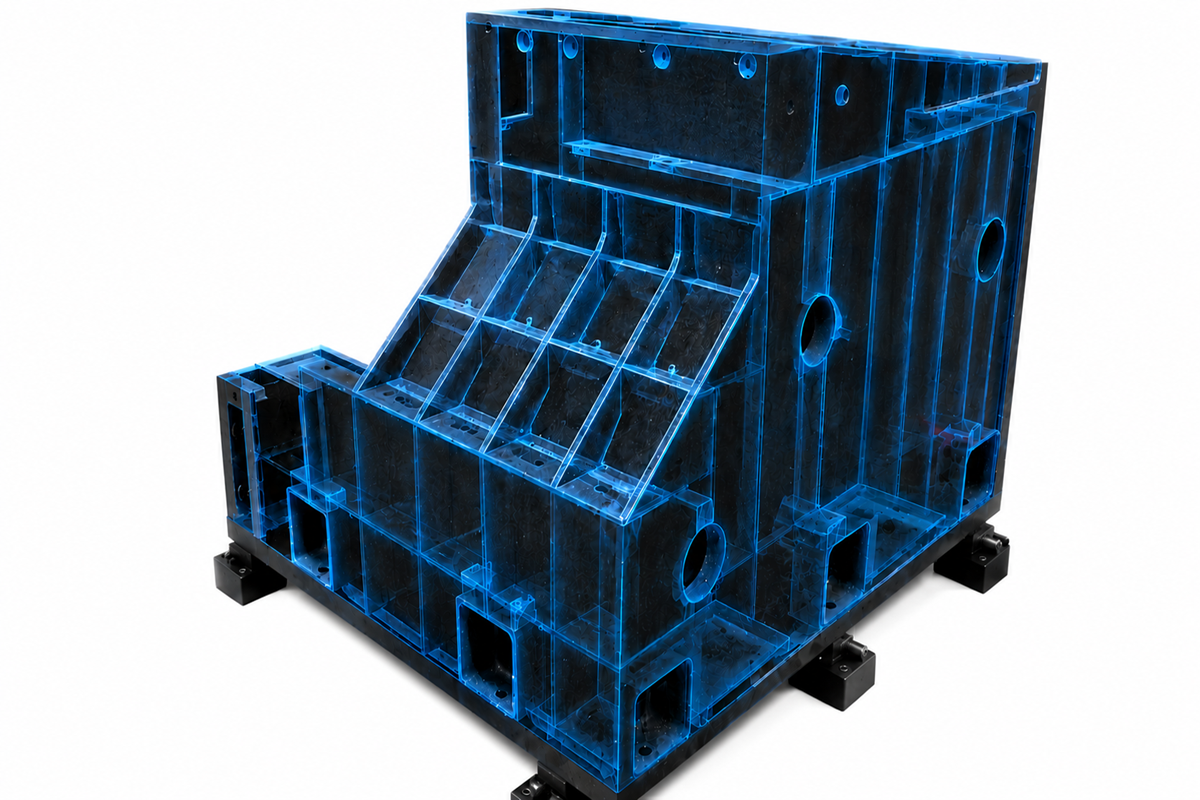

- Heavily Ribbed Castings
- Extreme Vibration damping
- Handles Spindle Load and Cutting Load effectively
- Step type Heavily Structured Cross Beam
- Dual LM Guideways to carry Spindle Head Load for superior rigidity and stability
- Capable to withstand extreme load during heavy duty cutting
Designed for Superior Ergonomics and Modern Machining Requirements
- Enhanced Accessibility – Facilitates easy loading and unloading of heavy workpieces while improving operator comfort.
- Efficient Chip Management – Optimized guarding design ensures smooth chip evacuation and a cleaner machining environment.

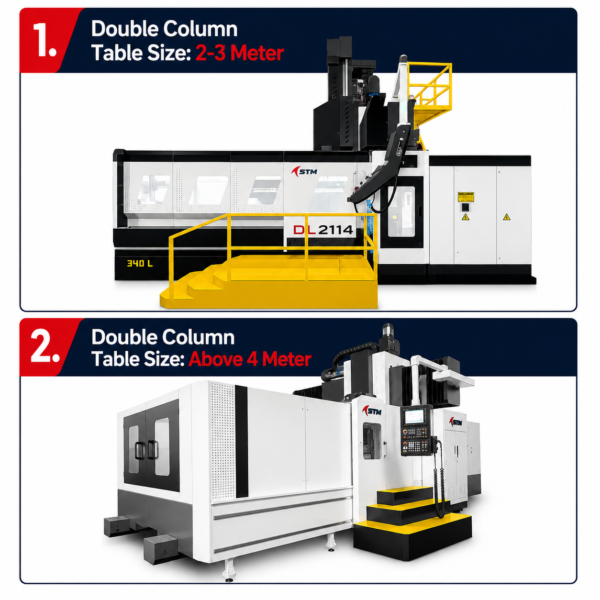

- Optimized Space Utilization – Maximizes usable workspace through a compact, well-integrated machine enclosure design.
Explore Our Wide Range of Options
All Side Machining Ready
-

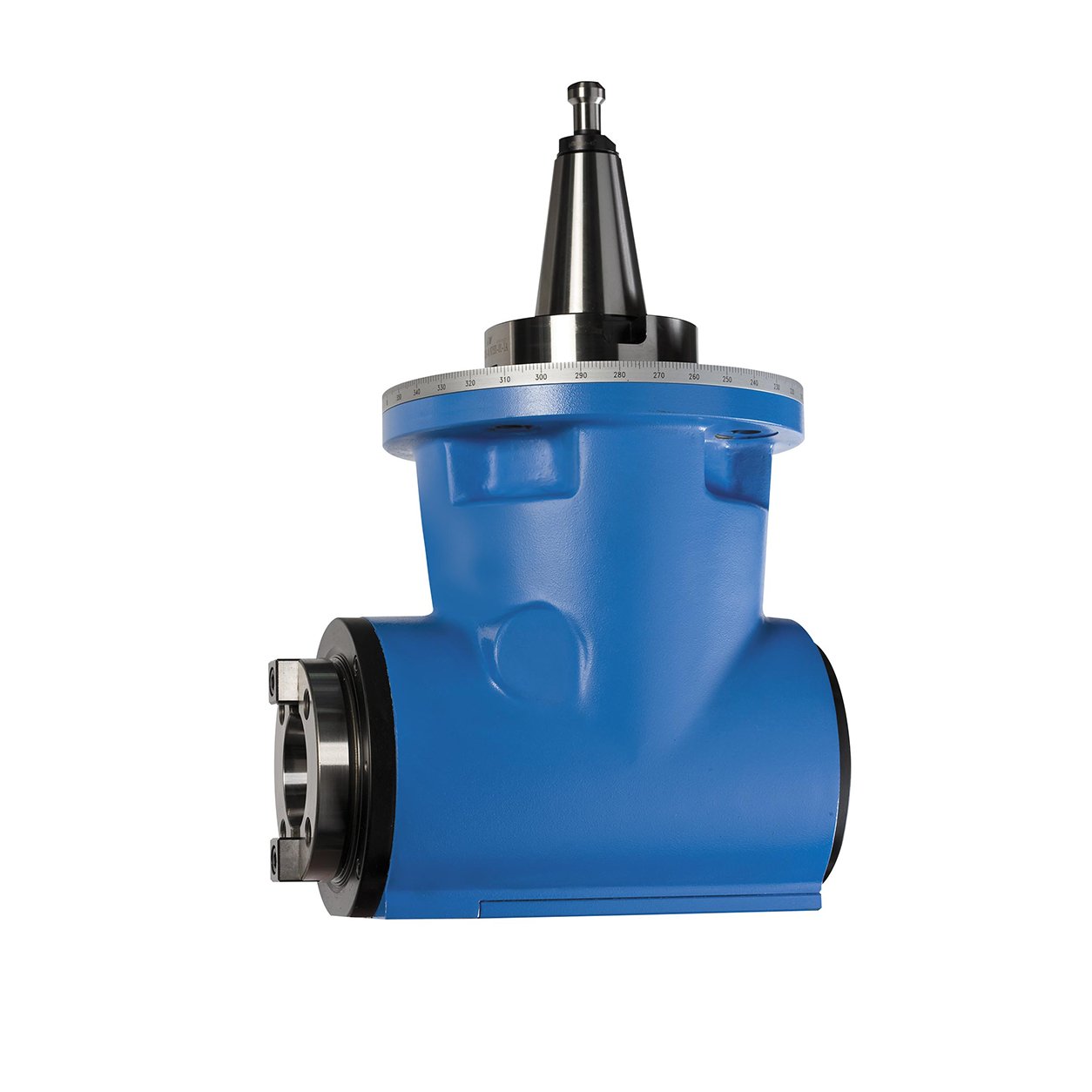

- Manual 90° Milling Head
-

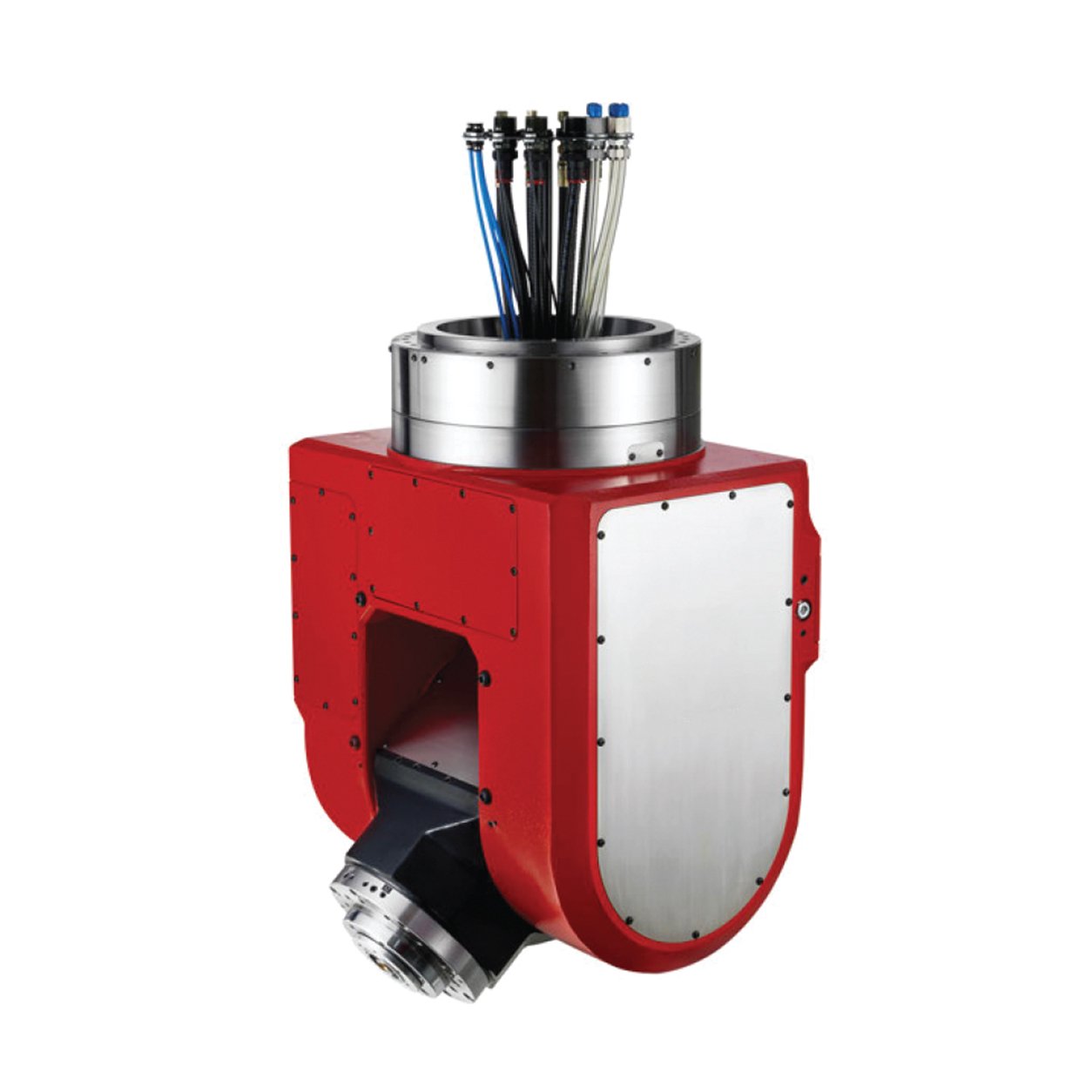

- Automatic 5-Axis Milling Head
-

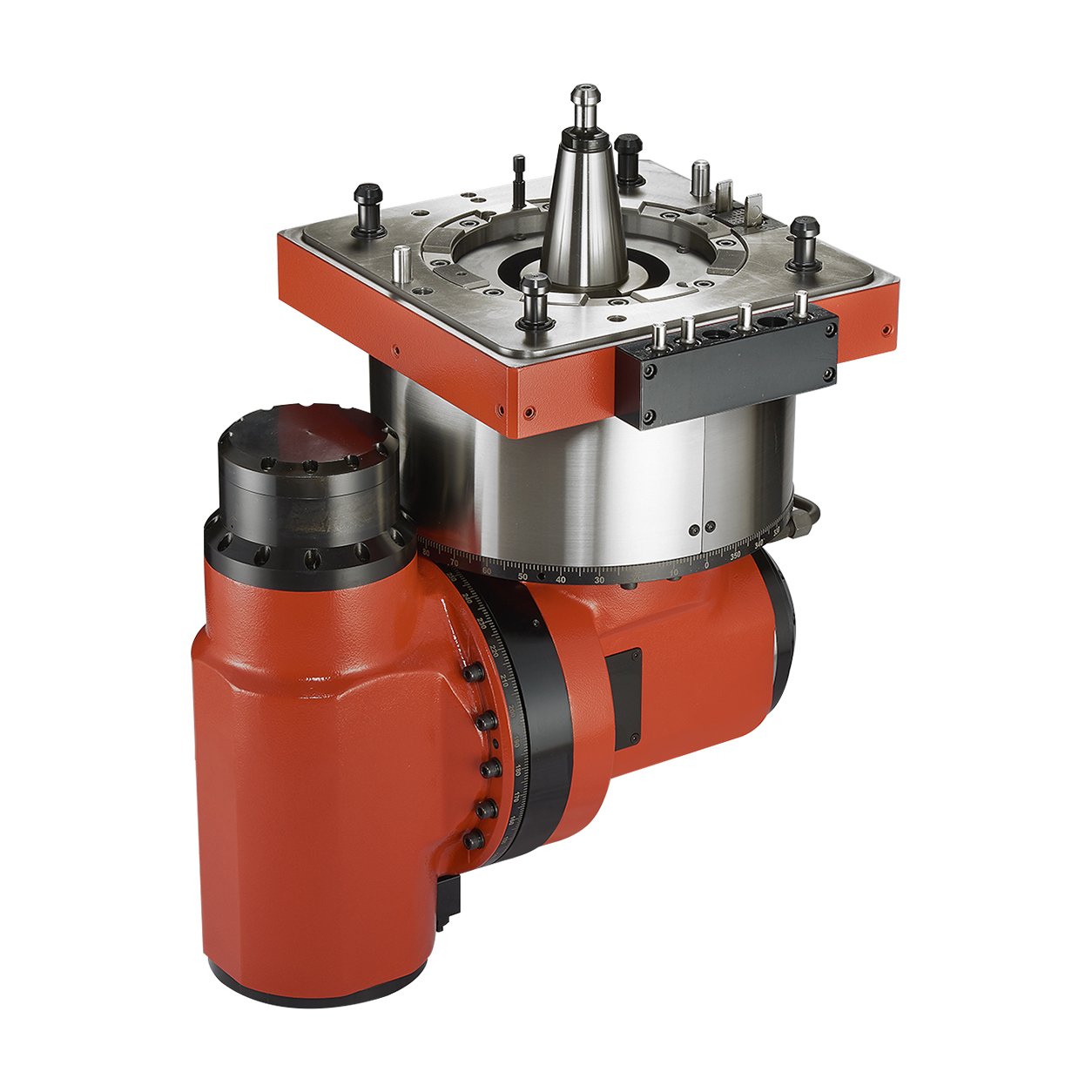

- Automatic Universal Milling Head
-

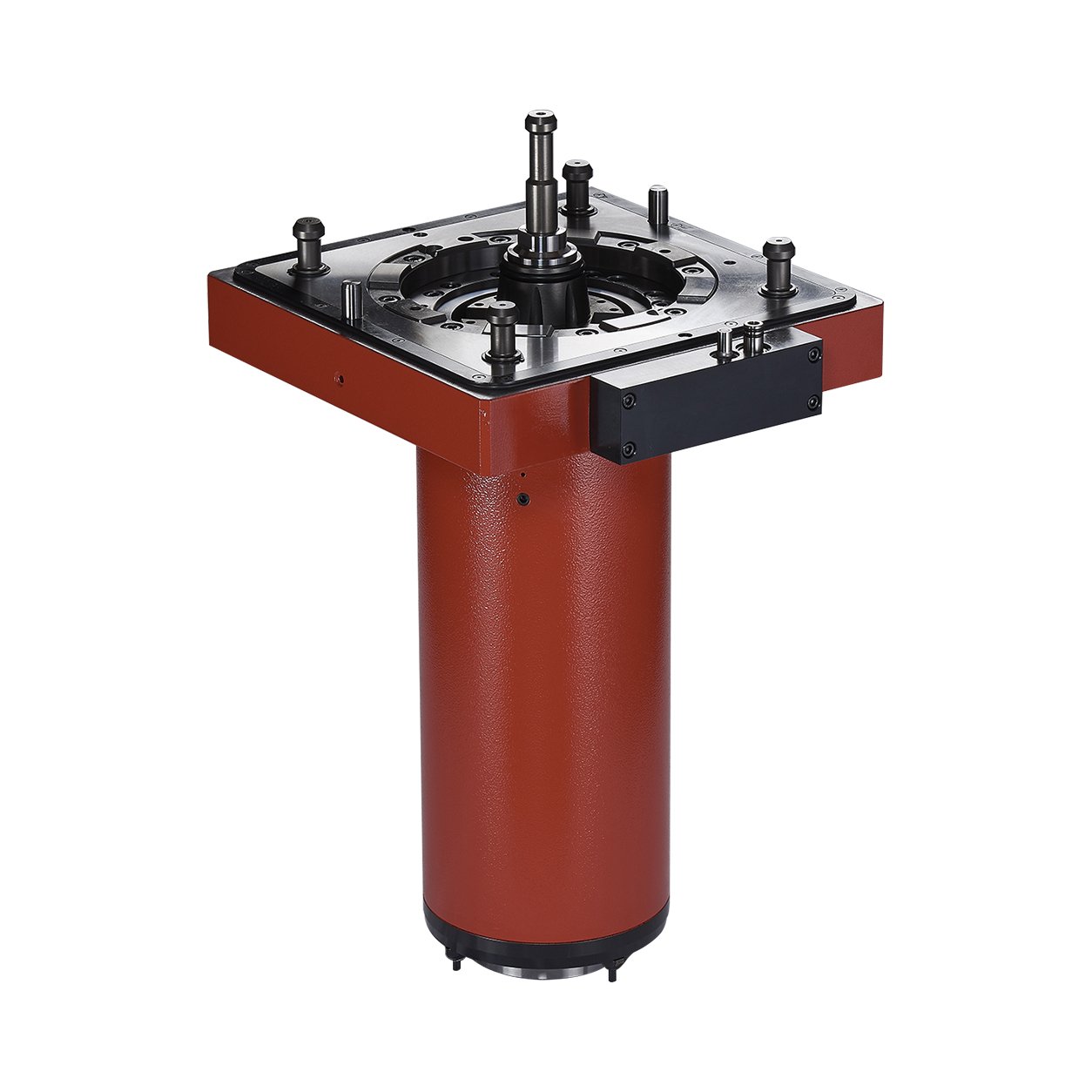

- Automatic Extended Milling Head
-

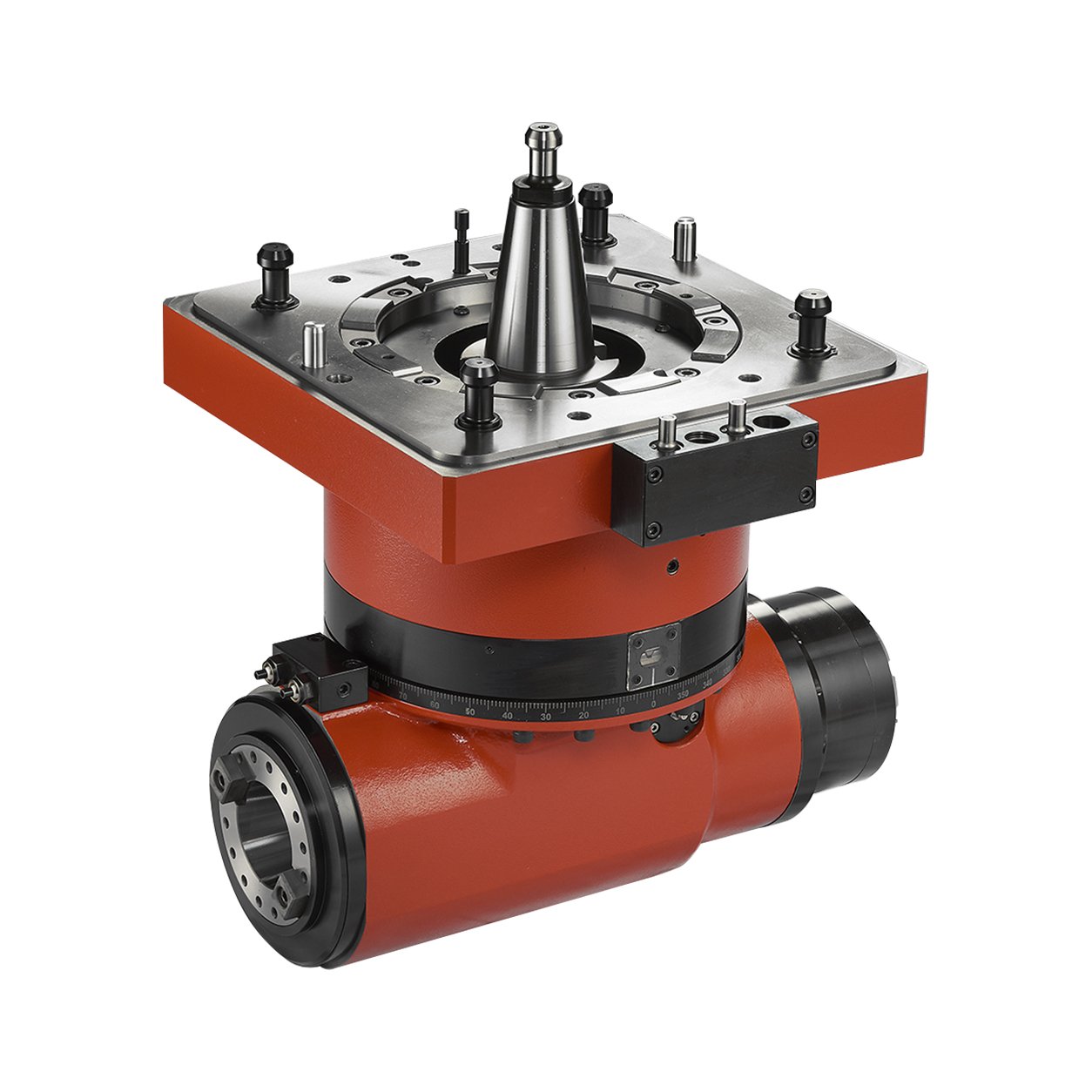

- Automatic 90° Milling Head
How Businesses benefit from STM Double Column Machines?
What Customers Say
Why Double Column Machines are Used for Machining of Larger Parts?
STM Double Column Machines offer Exceptional rigidity and High Accuracy in Larger component machining. The exceptional rigidity of Machine is due to the cross beam structure of double column machine supported by single piece base casting and heavily ribbed column casting with strong cross beams to handle heavy cutting load.
When to use Double Column Machine for Machining?

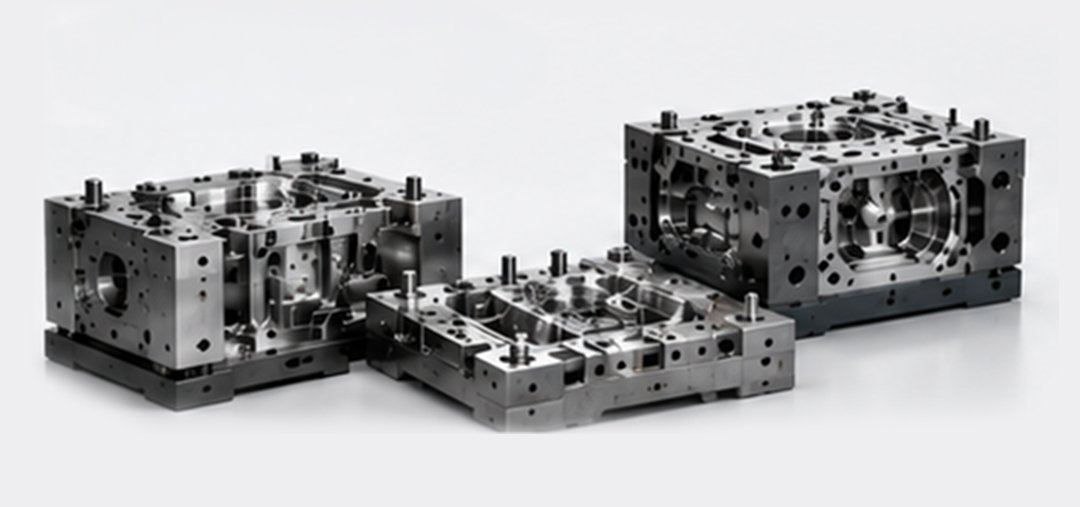

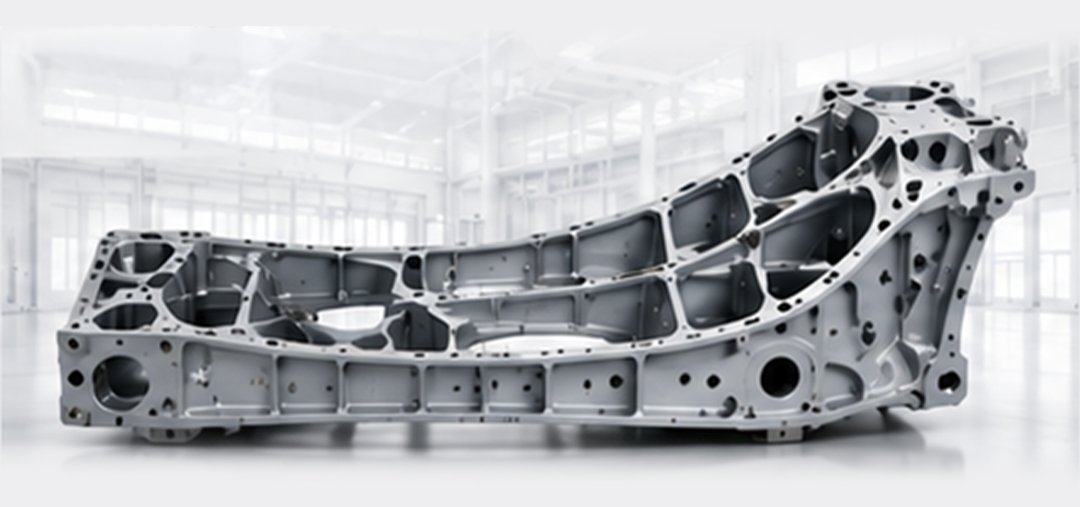

Double Column Machines are used in Industries like, Heavy engineering, aerospace, die and mould industry, automotive and more, when the component sizes exceed the VMC Machining capability. Mostly components size more than 2 meter and are much heavier in length needs double column machining.
How Accuracy is maintained in Heavy Metal Component Machining?
Double Column machines with multiple spindle heads can access all parts of the component efficiently, so the part re-setup is largely minimized, hence the re-setup errors are minimized and accuracy is maintained across operations
